Electronic Power Radiator Leak Testing Machine with 1 Year Warranty for Auto Radiator Leak Testing up to 800*800mm

Name: Electronic Power Radiator Leak Testing Machine with 1 Year Warranty for Auto Radiator Leak Testing up to 800800mm
Brand: WONDERY
Price: 15 USD

Buy cheap Electronic Power Radiator Leak Testing Machine with 1 Year Warranty for Auto Radiator Leak Testing up to 800*800mm product

Brand Name : WONDERY

Place of Origin : Anhui, China

Model Number : JLY-

MOQ : 1

Price : $15,800

Max radiator size : 800*800mm or customized

Sensor range : 0~±2000Pa

Differential pressure display : 1Pa

Sensor pressure tolerance : 13.8MPa

Hardware : 64bitCPU

Testing cycle : About 1 min per radiator

Working method : 2 position alternative

Test pressure range : 0~400KPa

Test pressure display : 1KPa

Leak value display : 3-digit integer with Pa unit

Parameter channel : 32 group

Power supply : AC220V±5%,50HZ

Air source : 400kPa~600k dry and clean air

Environment temperature : 5~40℃ working, -20~70℃ storage

Humidity : Below 80%RH, no dew

Contact Now

Electronic Power Radiator Leak Testing Machine with 1 Year Warranty for Auto Radiator Leak Testing up to 800*800mm

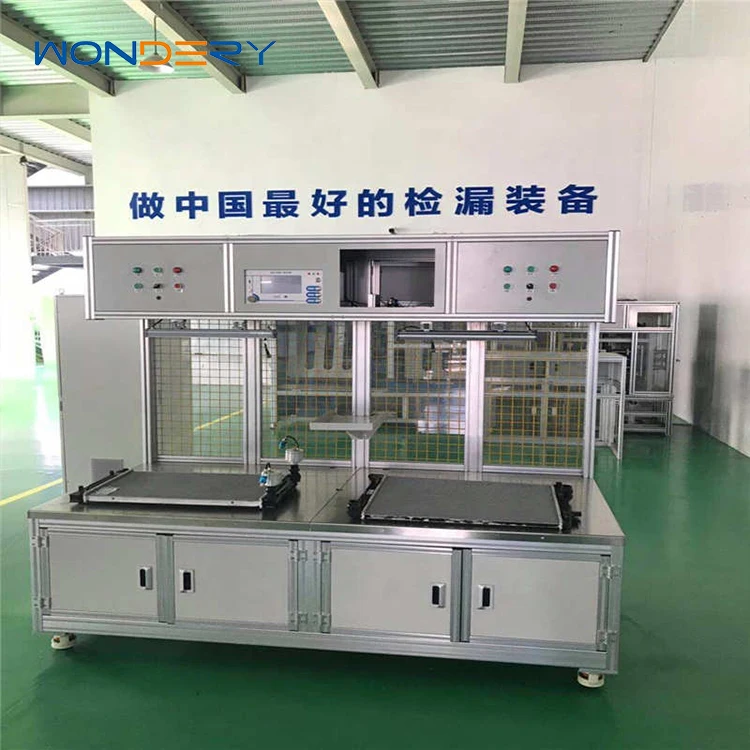

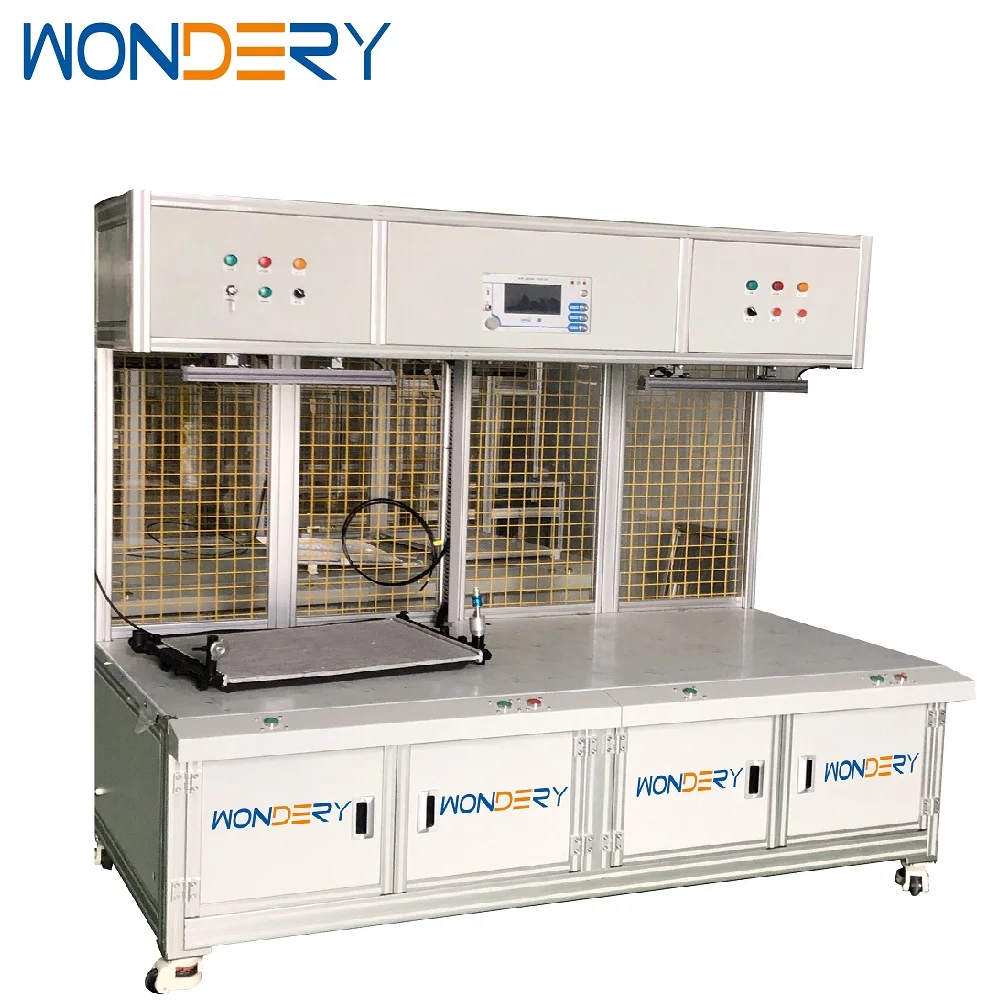

Air Pressure Radiator Leak Testing Machine for Mechanical Radiators

Product Application

The radiator leak testing machine is used to test the mechanical radiator through the differential air pressure. It is also called as radiator leak tester or radiator leak test equipment. The The radiator leak testing machine charges nitrogen or compressed air at a required pressure and carry out the pressure maintaining test to check whether the radiator has leaks. The radiator leak testing machine works in an alternative 2-position manner radiator leak testing machine/radiator leak test equipment/radiator leak tester radiator leak testing machine/radiator leak test equipment/radiator leak tester The radiator leak testing machine is also called as airtight leak tester, or radiator leak tester.

Technical Parameters of Radiator Leak Test Equipment / Radiator Leak Testing Machine
Parameter unit (Test pressure)	kPa,kg/cm2,psi,bar,torr
Parameter unit(Leak value)	Pa,Pa/s,mL/min
Tester size	320(L)×400(W)×205(H)
Tester weight	16kg
Test pressure range	0~400KPa
Test pressure minimum display value	1KPa
Differential pressure display range	0~±1999Pa
Differential pressure minimum display value	1Pa
Sensor range	0~±2000Pa
Sensor tolerated pressure	13.8MPa
Leak value display	3-digit integer with Pa unit, and 2-digit integer with other units
Leak upper and lower limit	Below ±1999Pa
Parameter channel	32 group
Time	0~999S
Hardware	64bitCPU
Power supply	AC220V±5%,50HZ
Air source	400kPa~600k dry and clean air
Environment temperature	Working temperature: 5~40℃; storage temperature: -20~70℃
Humidity	Below 80%RH, no dew
IO interface	Open circuit collective electrode interface and relay output
Testing cycle	About 1 min per core; 2 cores tested per min
Radiator core size	Max 80080048mm
Machine overall size	20009601900mm (L,W,H)

Main Features of Radiator Leak Test Equipment

a) large screen 7-inch touch screen;
b) differential pressure definition1 Pa;
c) multi-channel parameters (32 groups);
d) both manual and automatic test modes;
e) automatic self-cleaning function of the air pipes;
f) RS232 interface output;
g) USB data output; measurement value directly written into U disk;
h) sufficient remote control terminals for connecting PLC or direct driving the external equipment (such as solenoid valve);
i) 12000 groups of data storage capacity; could be tracked by date, worker no., and workpiece no.;
h) a wide range of cores to be tested radiator leak testing machine/radiator leak test equipment/radiator leak tester radiator leak testing machine/radiator leak test
equipment/radiator leak tester

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.

1. What is the power supply of the heat exchanger making machines?

The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?

The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?

The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?

The delivery time of the machine is 30-60 days after receipt of down payment.
